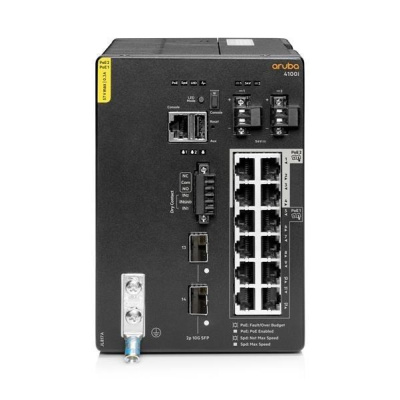

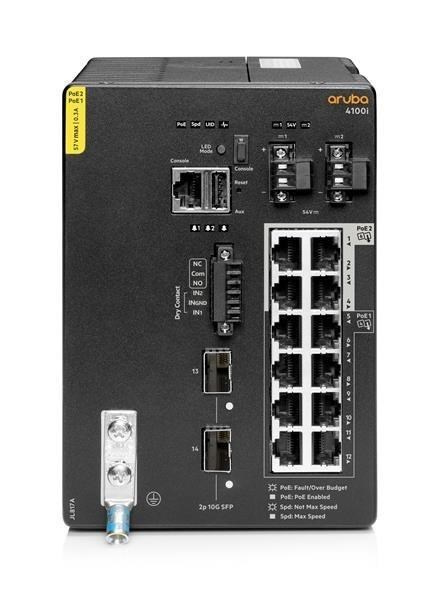

Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch
Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch (JL817A) | ||
Description | 4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port | |
2x 1/10G SFP ports | ||
Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) | ||
1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket 2x DC power socket | ||
Power Supplies | Field replaceable Industrial DIN Rail Power Supplies | |
Supported PSUs: JL819A, JL820A and JL821A Supported 2 PSU with redundancy, non sharing | ||
See external PSU specification table for available PoE power | ||
Fans | Fanless | |
Physical Characteristics | Dimensions | (H) 160 mm x (W) 113 mm x (D) 162.9 mm (173.5 mm w/DIN Rail Bracket) [6.3" x 4.4" x 6.4"(6.8" w/DIN Rail Bracket)] |
Weight | 3.84 kg (8.46 lbs) | |
Mounting And Enclosure | Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately | |
Additional Specifications | CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
Memory And Flash | 4 GB DDR3 32 GB eMMC | |
Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) | |
Performance | Model Switching Capacity | up to 64 Gbps |
Model Throughput Capacity | up to 46 Mpps | |
Average Latency (LIFO-64-bytes packets) | 1 Gbps: 2.390µSec , 10 Gbps: 2.038µSec | |
Switched Virtual Interfaces (dual stack) | 1G: 5.32 µSec 10G: 1.48 µSec 25G: 2.78 µSec 40G: 1.31 µSec 100G: 1.42 µSec | |
IPv4 host table (ARP) | 756 | |
IPv6 host table (ND) | 576 | |
IPv4 unicast routes | 576 | |
IPv6 unicast routes | 576 | |
MAC Table Size | 8192 | |
IGMP Groups | 512 | |
MLD groups | 512 | |
IPv4/IPv6/MAC ACL entries (ingress) | 256 / 128 / 256 | |
Environment | Operating temperature | -40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM) |
Non-Operating Storage relative humidity | 5% to 95%, non-condensing | |
Max Operating Altitude | up to 4.2 km (13800 ft) Max | |
Max non-operating Altitude | 4.6 km (15000 ft) Max | |
Electrical Characteristics | Frequency | N/A |
AC voltage | Refer to the PSU specification table | |
DC Input Voltage | 54V (switch input voltage, provided by JL819A, JL820A, JL821A) | |
Current | JL820A- max 8A (360W PoE) JL819A, JL821A- max 4.4A (180W PoE) | |
Maximum heat dissipation BTU/hr | With JL819A PSU: 89 BTU/hr at 230V - Room temperature (25°C) With JL820A PSU: 95 BTU/hr at 230V - Room temperature (25°C) With JL821A PSU: 94 BTU/hr at 48V - Room temperature (25°C) | |
Power Consumption (JL819A, JL820A- 230VAC) (JL821A- 48VDC) | With JL819A PSU: Idle: 22W 100% Traffic Rate: 26W 100% Traffic Rate (w/ heater): 55W
With JL820A PSU: Idle: 24W 100% Traffic Rate: 28W 100% Traffic Rate (w/ heater): 57W
With JL821A PSU: Idle: 22W 100% Traffic Rate: 27W 100% Traffic Rate (w/ heater): 56W
*Heater will only turn on at extreme low temperature condition | |
Safety | Europe: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN 62368-1, Ed.2:2014
North America: UL 62368-1, 2nd Edition CAN/CSA C22.2 No. 62368-1-14
Worldwide: IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 EN/IEC 60825-1:2014 Class 1 UL/IEC 61010-2-201 GB 4943.1:2011 CNS 14336-1 K 60950-1 | |
EMC | Europe: EN 55011:2010/CISPR 11, Class A EN 55032:2015/CISPR 32, Class A EN 55035:2017/CISPR 35 EN 61000-3-2:2014, Class A EN 61000-3-3:2013
US: FCC CFR 47 Part 15: 2018 Class A
Canada: ICES-003 Class A
Japan: VCCI Class A
Taiwan (BSMI) CNS 13438 Class A
Korea KN 35:2015
Korea KN 32 Class A
Aus/NZ AS/NZS CISPR 32 Class A
Worldwide: VCCI Class A CISPR 11 Class A CISPR 22 Class A | |
Lasers | EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only | |
Industry Specific Compliance | Industrial | EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity |
Power Substation | IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking | |
Railway Application | EN 50121-3-2 Railway - Apparatus for Rolling Stock EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment | |
Traffic Control System | NEMA TS 2-2016 | |
Protection Standard | EN 60529 IP30 | |
Immunity | Generic | EN 55035, CISPR 35, KN35 |
EN | EN 55035, CISPR 35 | |
ESD | EN 61000-4-2 (air - 15kV, contact - 8kV) | |
Radiated | EN 61000-4-3 (10V/m UTP, 20V/m STP) | |
EFT/Burst | EN 61000-4-4 4kV (1kV UTP, 4kV STP) using:
Without surge protector and STP:
| |
Surge | EN 61000-4-5 2kV/4kV(UTP) using:
Without surge protector:
| |
Conducted | EN 61000-4-6 (3Vrms UTP, 10Vrms STP) | |
Power Frequency Magnetic Field | EN 61000-4-8 (100A/m 1min,1000A/m 1sec) | |
Damped Oscillatory Magnetic Field | EN 61000-4-10 (100A/m) | |
Conducted CM Disturbances | EN 61000-4-16 (30V, Cont/300V, 1 sec) | |
Ripple Immunity DC Power | EN 61000-4-17 (10%) | |
Damped Oscillatory Wave | EN 61000-4-18 (2.5kV, 1MHz) | |
Voltage Dips and interruptions | EN 61000-4-29; EN 61000-4-11 (Level 3) | |
Harmonics | EN 61000-3-2, IEC 61000-3-2 | |
Flicker | EN 61000-3-3, IEC 61000-3-3 | |
Dynamics | Vibration | IEC 60068-2-6 & 64 (operation & nonoperation) |
Shock | IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine) IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal) IEC 60068-2-31 (Non-operational Free Fall, 100mm) IEC 60068-2-31 (Non-operational Topple) | |
Railway Application | Compliance to EN 50155 (mounting) & IEC 61373 | |

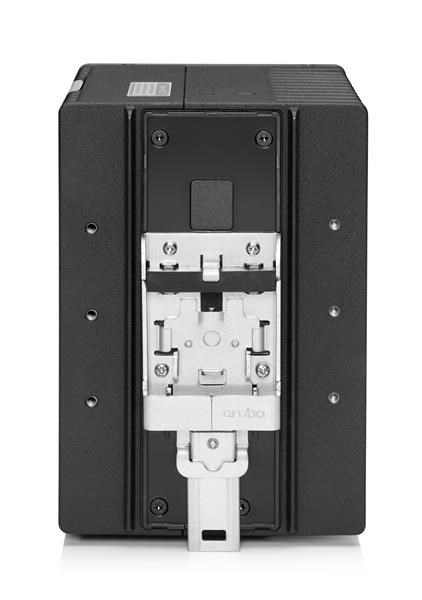

Mounting and Enclosure | Mounts to JL822A (3U DIN-to-Rack Bracket, puchased separately) which allows the switch to be mounted in an EIA/TIA standard 19" telco rack. | |
Switch can be directly installed on a DIN rail mounted to a suitable surface to withstand the weight of the switch and power supplies. | ||
DIN rail mounting (included). | ||
Can be mounted in 90-degree manner to present the cables exiting the side of the switch - see installation guide for details. | ||
Wire | Power Input | AWG 14 up to 2m |
Alarm connector | AWG 18-16 | |
PoE Budget | User configurable PoE budget - If 2 external power supply units are used concurrently, please set according to PSU with lower PoE capacity.
JL819A Below ambient 50°C: 180W At ambient 60°C: 140W At ambient 70°C: 80W
JL820A Below ambient 50°C: 360W At ambient 60°C: 320W At ambient 70°C: 200W
JL821A With PSU input = 48V-55V DC Below ambient 50°C: 180W At ambient 60°C and 70°C: 150W
With PSU input = 24V DC Below ambient 70°C: 150W
With PSU input = 12V DC Below ambient 60°C: 60W At ambient 70°C: 50W
Does not support PSU Power Sharing. Refer to Installation & Getting Started Guide for the PoE budget setup. |
.
