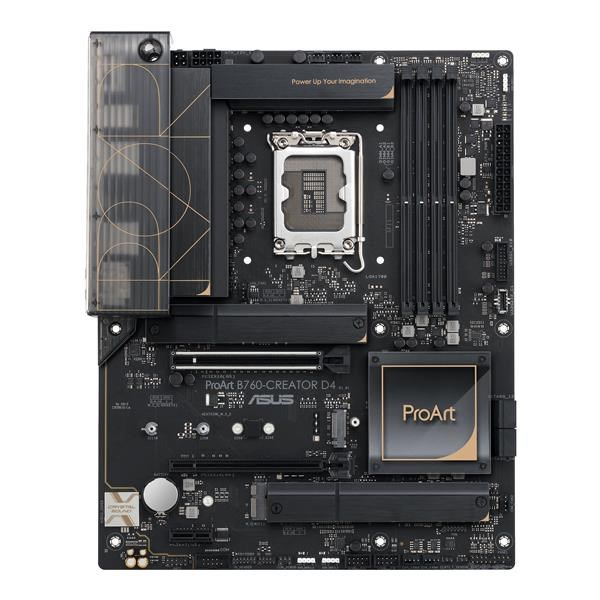

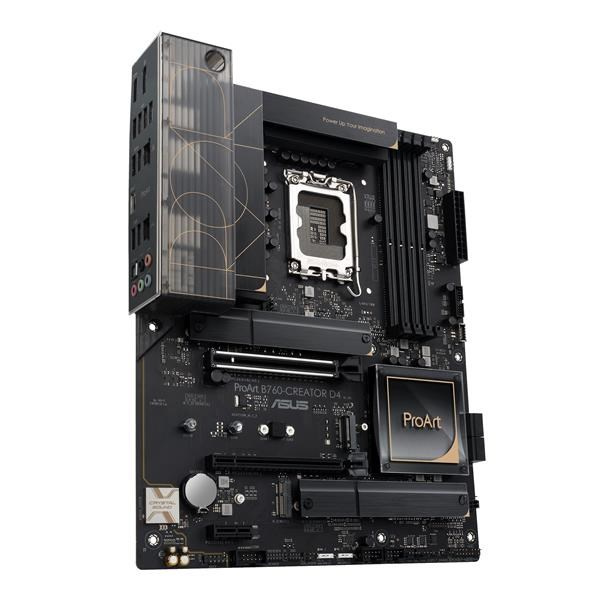

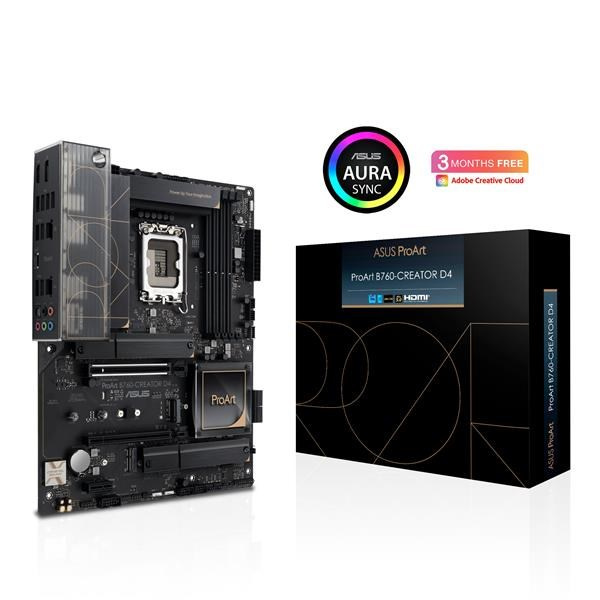

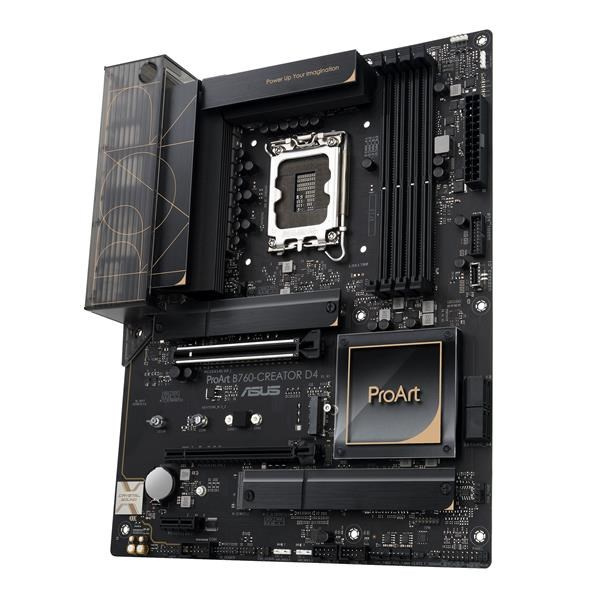

ASUS MB Sc LGA1700 PROART B760-CREATOR D4, Intel B760, 4xDDR4, 1xDP, 1xHDMI
Popis
Parametry
Hlídací pes
ProArt B760-CREATOR D4
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Supports Intel® 10 nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® B760 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary devpending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/. | |
| Graphics | 1 x HDMI® port** |
| 1 x DisplayPort port*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Support 4K@60Hz as specified in HDMI 2.1. | |
| *** Support max. 8K@60Hz as specified in DisplayPort 1.4. | |
| Expansion Slots | Intel® 13th & 12th Gen Processors |
| 1 x PCIe 5.0/4.0/3.0 x16 slot | |
| Intel® B760 Chipset* | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 3.0 x1 slot** | |
| ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. | |
| Storage | Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel® B760 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*** | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports*** | |
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| 1 x Intel® 1Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | M.2 slot only (Key E, PCIe)* *Wi-Fi module is sold separately. |
| USB | Rear USB (Total 9 ports) |
| 1 x USB 3.2 Gen 2 Type-C® port | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Audio Features | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio cover | |
| - Unique de-pop circuit | |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2 port (1 x USB Type-C®) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 1 x Intel® 1Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x M.2 slot (Key E) | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5 pin System Panel header | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt™ header | |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM (- Digital power design with DrMOS) | |
| - Enhanced DRAM Overcurrent Protection | |
| - ESD Guards | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - Q-Connector | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - Flexible M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| AURA Sync | |
| - AURA RGB header | |
| - Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - AURA Creator | |
| - AURA Sync | |
| - Fan Xpert 4 | |
| - Power Saving | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| DIGI+ VRM | |
| Turbo app | |
| ASUS CPU-Z | |
| IT Management software supported | |
| - ASUS Control Center Express(ACCE) | |
| ProArt Creator Hub | |
| CreationFirst | |
| Norton 360 Deluxe (60 Days Free Trial) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 2 x M.2 Rubber packages | |
| 1 x Screw package for M.2 Key E | |
| 1 x ProArt ruler | |
| 1 x Q-connector | |
| Documentation | |
| 1 x ACC Express Activation Key Card | |
| 1 x User guide | |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1700
Chipset:
Intel B760
PCI Express x16:
2
COM port:
Ano
Formát základní desky:
ATX
3.5mm Jack:
Ano
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
1
TPM:
Ano
M.2 slot:
3
SATA 3:
4
VGA:
0
DVI:
0
HDMI:
1
PCI Express x1:
1
LAN:
1Gbit/s
DisplayPort Type-C:
0
Aktuální cena produktu je5523Kč
s dph
