Club3D hub USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack
Popis
Parametry
Hlídací pes
USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack
CSV-1591 - The Club 3D Hub is a 4-in-1 USB Type-C hub with HDMI™, USB Type-A 2.0, 3.5mm audio and USB Type-C PD charging, the design perfectly suits all DP Alt-mode capable devices. With this hub, you can enjoy ultra high definition video of your host on big screen, enjoy fantastic music, transmit USB 2.0 data and connect USB Type-C PD Adapter to charge the host.
This hub can work on all USB Type-C and Thunderbolt™ 3 hosts that supports DP Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.
TECHNICAL SPECIFICATIONS
| Product Name | USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack |
| Product Series | Docking Station |
| Item code | CSV-1591 |
| EAN code | 8719214471453 |
| UPC code | 841615101634 |
| Features | • Upstream: 1x USB Type-C Male (Connection to host) Support DP1.2 Alt mode, with bandwidth max 5.4 Gbps per lane, 4 lanes 21.6Gbps • Downstream: 1x HDMI™ Female Support HDMI™ max 4K/60Hz 4:4:4 8bit with 18Gbps Bandwidth Support 6/8/10/12 bit color depth output Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2 Support HDCP 2.2 & HDCP1.4 Support HDR 1x USB Type A 2.0, Max 480Mbps bandwidth • Support BC 1.2 with max 7.5W(5V@1.5A) downstream charging • 1x 3.5mm combo audio* Support 48K/44.1KHz sampling rate Audio output * Note: Audio can be output from HDMI or 3.5mm audio port, below explanation illustrates the priority of audio output when both HDMI and 3.5mm audio ports are connected. • When source device is connected to this product prior to sink devices, audio outputs from the port that is connected last. • When sink devices are connected prior to source device connection, audio outputs from 3.5mm audio port |
| OS Support | All |
| In the box | CSV-1591, 4-in-1 Hub Quick Install Guide |
| AVAILABLE INTERFACES | |
| Upstream | 1x USB Type C Male (Host connection) |

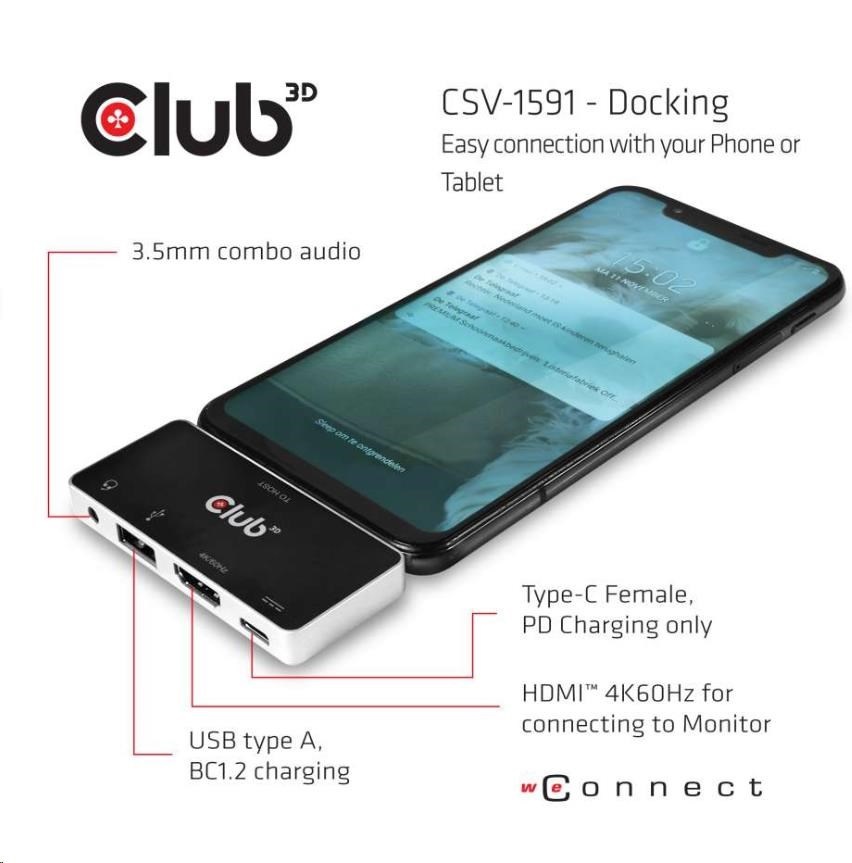

| Downstream | 1x HDMI™ 4K60Hz Female for connecting to Monitor 1x USB type A, BC1.2 charging 1x USB Type-C Female, PD Charging only 1x.3.5mm combo audio |

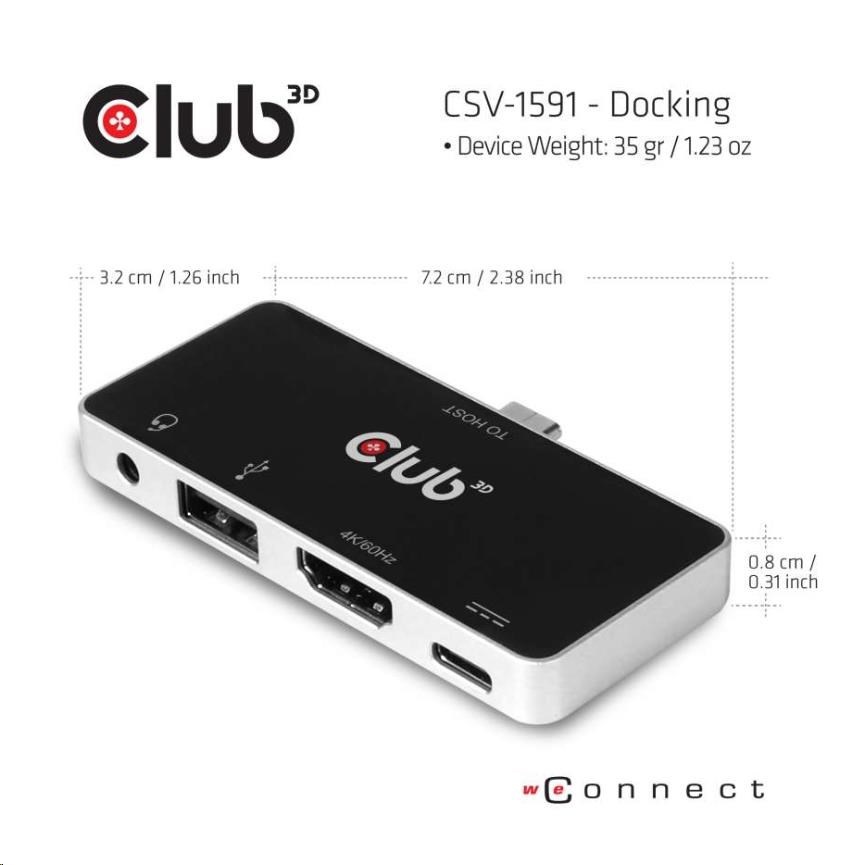

| Other Info | Box size: 10 x 10 x 3 cm Box size: 3.93 x 3.93 x 1.18 inch Device size: 7.2 x 3.2 x 0.9 cm Device size: 2.83 x 1.26 x 0.9 x 0.35 inch Device Weight: 35 gr / 1.23 oz LDPE Bag Weight: 5 gr / 0.17 oz Box Weight: 65 gr / 2.3 oz Total Weight: 105 gr / 3.7 oz Meets ROHS, FCC, and CE EMI requirements |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
.Typ příslušenství:
Dokovací stanice a replikátory
Aktuální cena produktu je1400Kč
s dph
