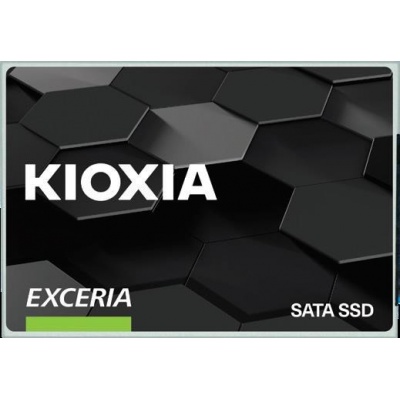

KIOXIA SSD EXCERIA Series SATA 6Gbit/s 2.5-inch 960GB

KIOXIA LTC10Z960GG8 Key features

EXCERIA SATA SSD
Upgrade to the Future

Capacity
240GB 480GB 960GB

Max Sequential Read/Write Speed(1)
555/540 MB/s

Max Random Read/Write Speed(2)
82,000/88,000 IOPS

Features
BiCS FLASH™
Shock Resistant
2.5-inch, 7mm Height Form Factor
SSD Utility Management Software

Upgrading from a hard disk drive (HDD) should be easy and affordable and that’s where EXCERIA SATA SSD series come in. Designed to boost the speed of your desktop or notebook PC over conventional HDDs, the EXCERIA SATA SSD series leverages BiCS FLASH™, to deliver well-balanced performance, reliability, and value that will transform your desktop or mobile system.

Instant Performance Upgrade
Up your productivity with the EXCERIA SATA SSD series and enjoy faster boot ups, file transfers, and system responsiveness. Say goodbye to hard disk drive lag and get a computing experience worthy of your time.

Performance Made Affordable
Upgrading to an SSD from a conventional HDD can feel like you've purchased an entirely new system. EXCERIA SATA SSD series balance price and performance so you have enough funds left over for other.

Improved for On-the-go
Compared to hard disk drives, EXCERIA SATA SSD series also offer improved durability and power consumption, which can translate into longer battery life to keep you up and running longer.

Cutting Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring, SSD tuning and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

EXCERIA SATA SSD Product Specifications

Physical
Capacity: 960GB
Interface Serial ATA (SATA): 6 Gbit/s
Form Factor: 2.5-inch, 7mm height
Flash Memory Type: BiCS FLASH™ TLC
Dimension (Max: LxWxH): 100.45 x 70.10 x 7.20 mm
Weight 960GB: 45.7g (typ.)

Performance
Max Sequential Read Speed(1) 555 MB/s
Max Sequential Write Speed(1) 540 MB/s
Max Random Read Speed(2) 960GB: 81,000 IOPS
Max Random Write Speed(2) 960GB: 88,000 IOPS
Endurance: TBW (Total Bytes Written)(3) 960GB: 240 TB
MTTF 1.5 million hours

Environmental
Operating Temperature (Tc) 0 °C to 65 °C
Storage Temperature -40 °C to 85 °C
Shock Resistance 14.7 km/s2 {1500 G} 0.5 ms half sine wave
Vibration 196 m/s2 {20 G} (Peak, 10 to 2,000 Hz) , (20 min / Axis) x 3
Supply Voltage 5 V ± 5%
Power Consumption (Active) 960GB: 1.7W (typ.)
Power Consumption (Idle) 100 mW (typ.)
Power Consumption (DevSleep) 10 mW max

Compatibility
Serial ATA (SATA) ATA/ATAPI Command Set-3 (ACS-3) and Serial ATA revision 3.2 interface specifications supported
Connector Type Standard SATA Power Connector
Target Applications Client desktops and laptops

Additional Features
Services and Support 3-year manufacturer's warranty(4)
Performance Optimization TRIM, Idle Time Garbage Collection
