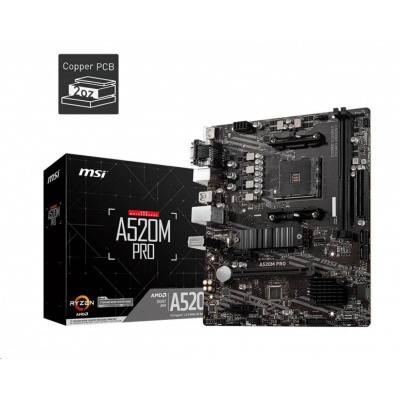

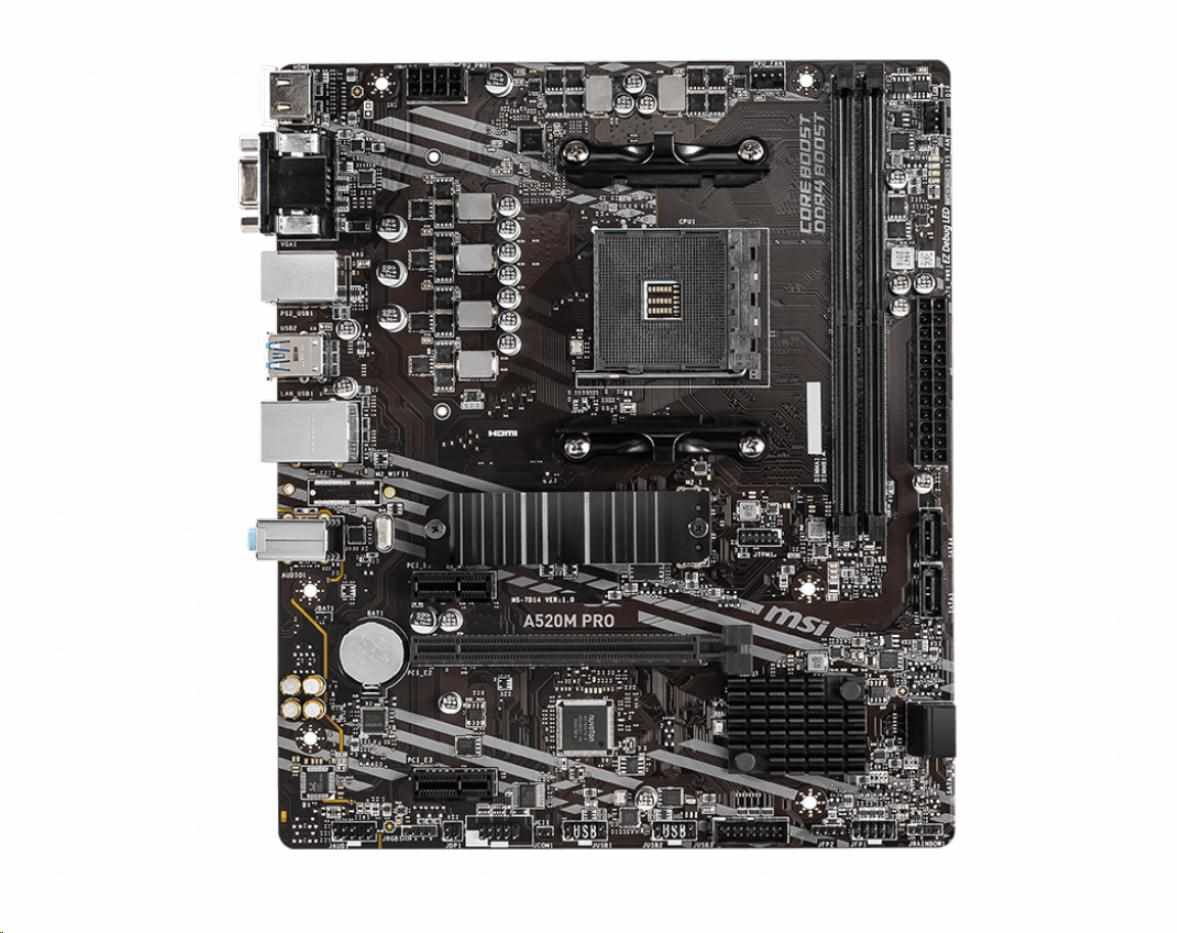

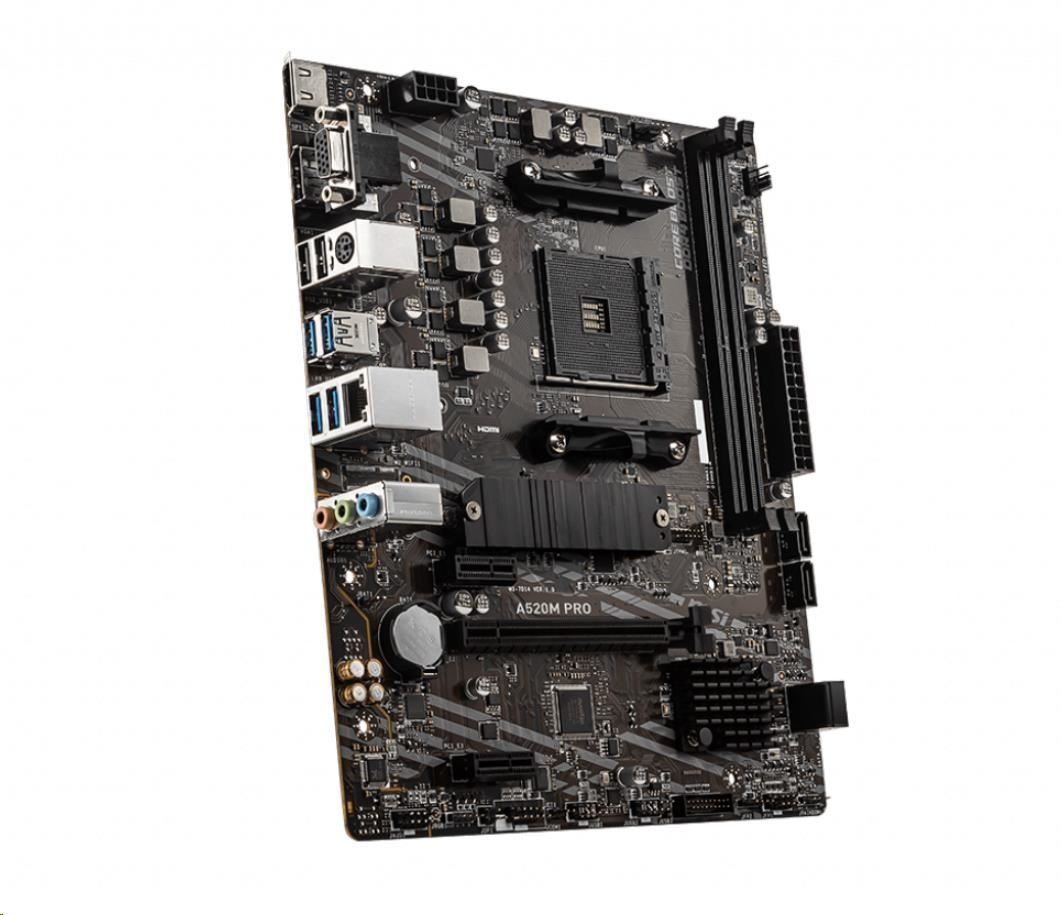

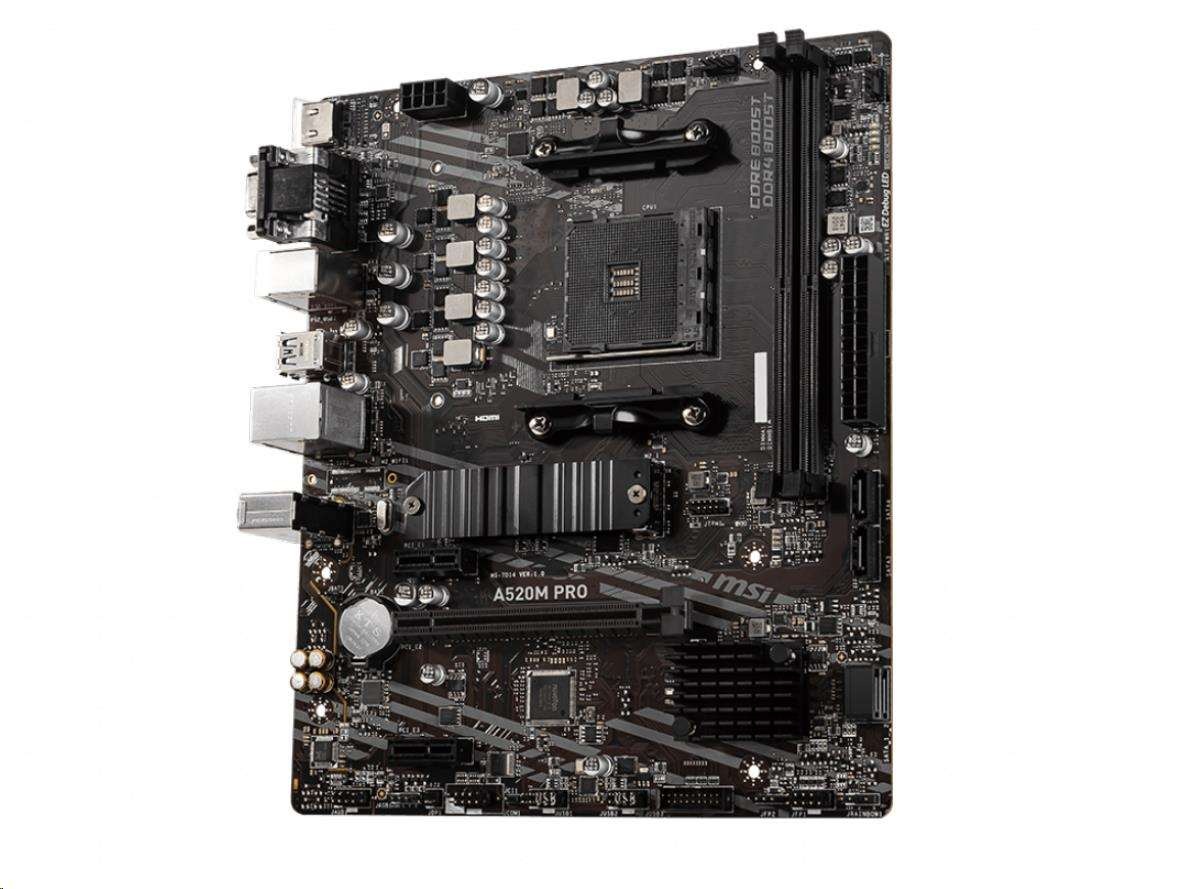

A520M PRO
- Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability

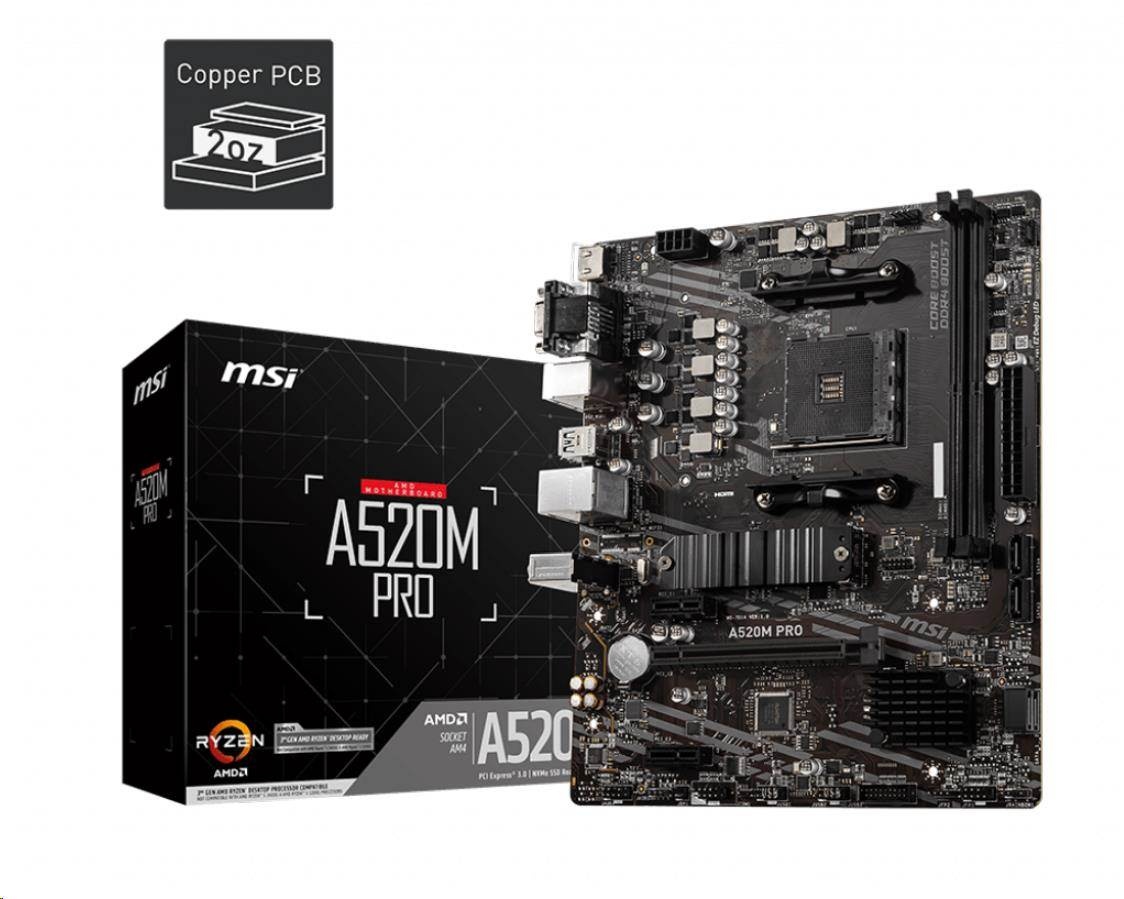

- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
TECHNICAL SPECIFICATIONS
Socket | AM4 |
CPU Support | Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors |
Chipset | AMD® A520 Chipset |
Memory | - 2x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE - 1DPC 1R max speed 4600 MHz - 1DPC 2R max speed 3866 MHz - Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
|
Expansion Slot | - 1x PCIe x16 slot (PCI_E2)
- 2x PCIe 3.0 x1 slots
|
Onboard Graphics | |
Storage | AMD A520 Chipset - 4x SATA 6Gb/s ports
- 1x M.2 slot (Key M) (from AMD Processor)
- M2_1 slot (from AMD Processor) - Supports PCIe 3.0 x4 1 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices |
RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
USB | AMD A520 Chipset - 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor - 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
|
AUDIO | Realtek® ALC892 Codec - 7.1-Channel High Definition Audio
|
LAN | - 1x Realtek® RTL8111H LAN controller
|
Internal Connectors | - 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x Serial port connector
- 1x M.2 slot (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 4-pin RGB LED connector
- 1x 3-pin RAINBOW LED connector
- 1x TPM module connector
- 1x Clear CMOS jumper
|

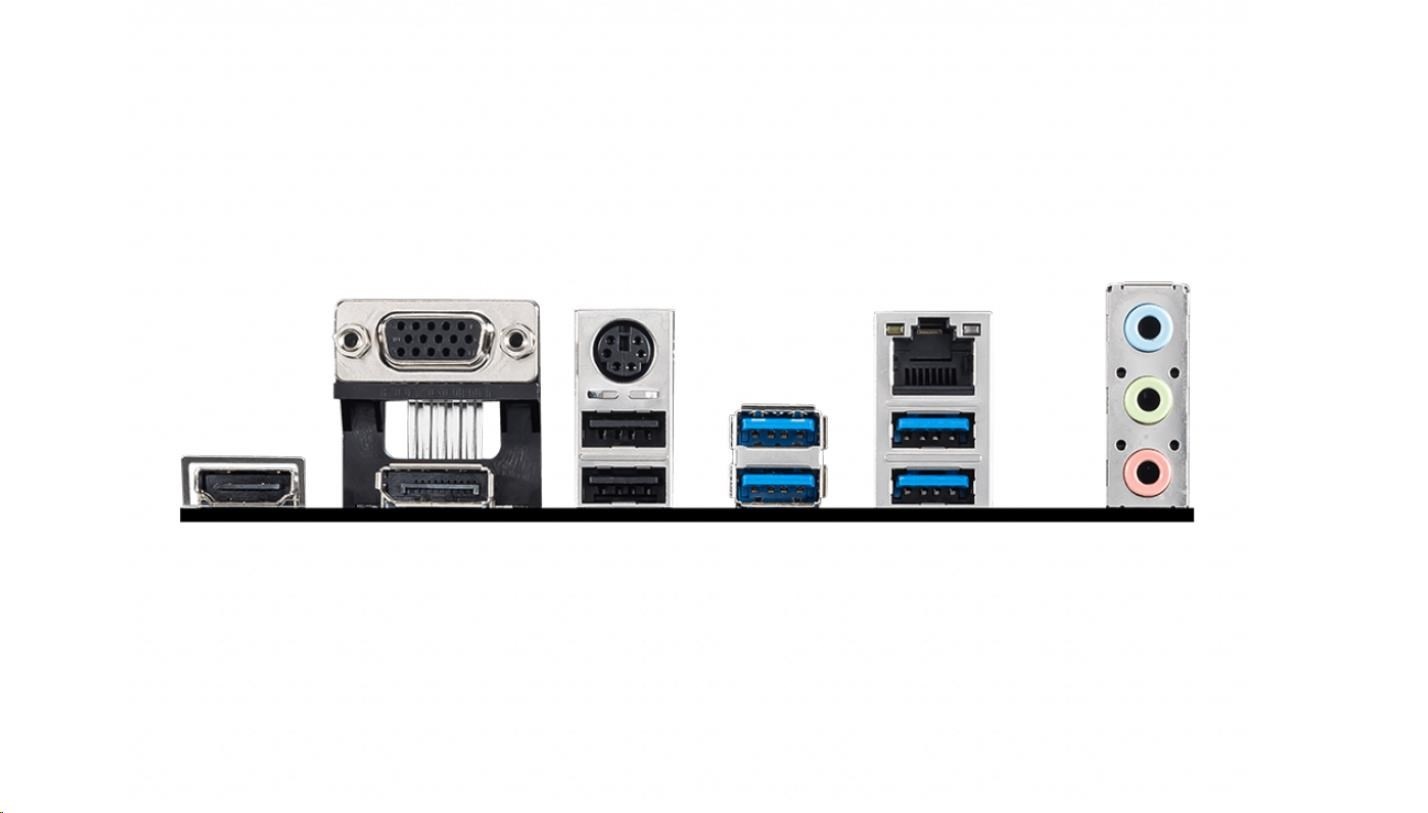

Back Panel Ports | - VGA
- Keyboard / Mouse
- LAN port
- HDMI
- DisplayPort
- USB 2.0 Ports
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- Audio Connectors
|
Dimensions | - M-ATX Form Factor
- 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
|
Mounting | |
Box Content | - A520M Pro
- Quick Installation Guide
- MSI Case Badge
- 2x SATA Cables
- Product Registration Card
- I/O Shielding
- Driver DVD
|
Form Factor | m-ATX |
Operating System | Support for Windows® 10 64-bit |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Chipset:
Intel B360
Chipset:
AMD A520
PCI Express x16:
1
Podpora RAID:
1
Podpora RAID:
10
LPT port:
Ne
Formát základní desky:
micro ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
AMD
Počet paměťových slotů:
2
DisplayPort:
1
TPM:
Ano
USB 2:
6
USB 3:
6
M.2 slot:
1
SATA 3:
4
VGA:
1
DVI:
0
HDMI:
1
Led Header:
Ne
PCI Express x1:
2
LAN:
1Gbit/s
Aktuální cena produktu je1734Kč
s dph
