MSI MB Sc AM5 MAG B650 TOMAHAWK WIFI, AMD B650, 4xDDR5, 1xDP, 1xHDMI, WI-FI

Přidat do oblíbenýchMSI MB Sc AM5 MAG B650 TOMAHAWK WIFI, AMD B650, 4xDDR5, 1xDP, 1xHDMI, WI-FI
Formát základní desky:ATX; Chipset:AMD B650; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:3; SATA 3:6; Podpora RAID:0, 1, 10; PCI Express x16:2; PCI Express x1:1; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:0; DVI:0; USB 2:6; USB 3:9; USB C:2.

Kód produktu2648358
Part numberMAG B650 TOMAHAWK WIFI
EAN produktu4711377010153

Záruka:36 Měsíc(ů)
Výrobce:MSI
Skladová dostupnost:Skladem
Běžná cena
5536 Kč
Vaše cena bez DPH
4408.26 Kč
Vaše cena včetně DPH
5334 Kč
Počet
ks
Dotaz na prodejce >






Přidat produkt k porovnání >Přidat produkt k oblíbeným >
Popis
Parametry
Hlídací pes

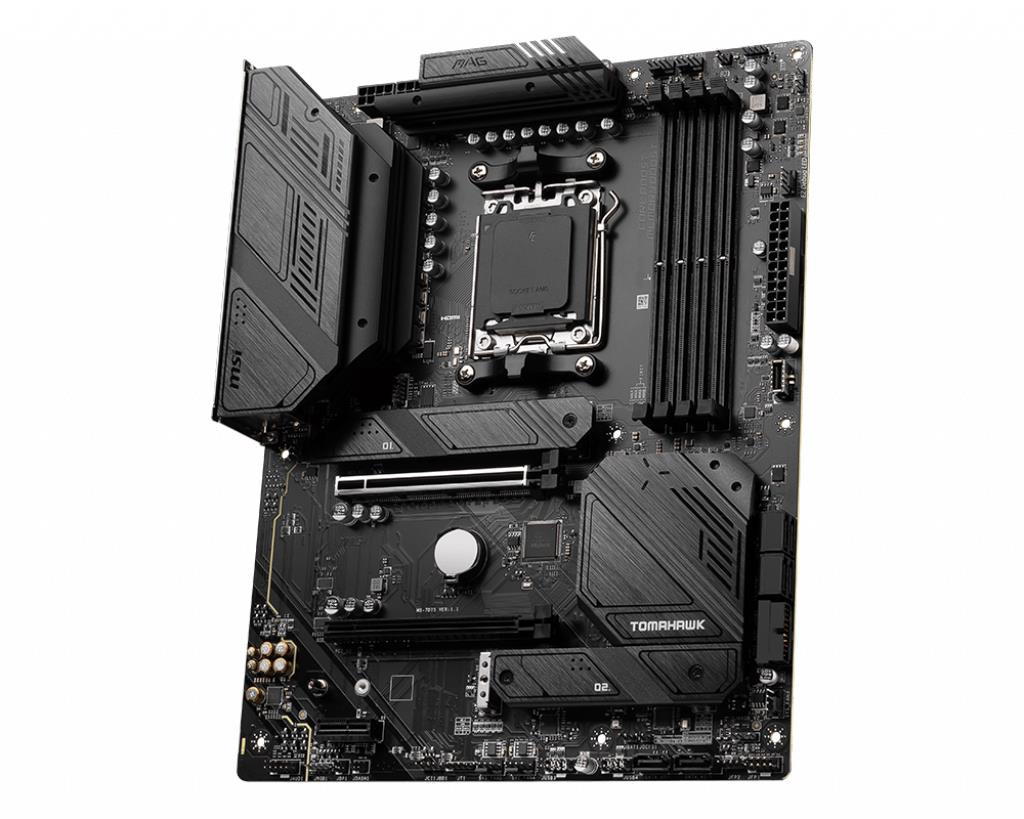

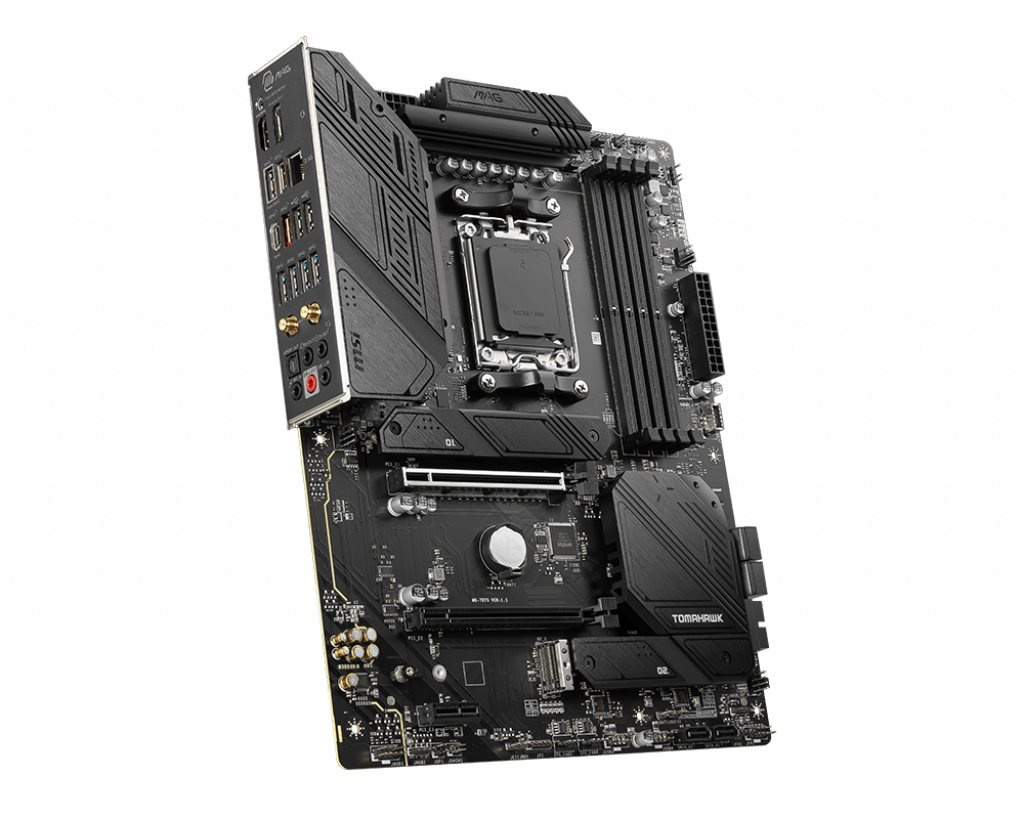

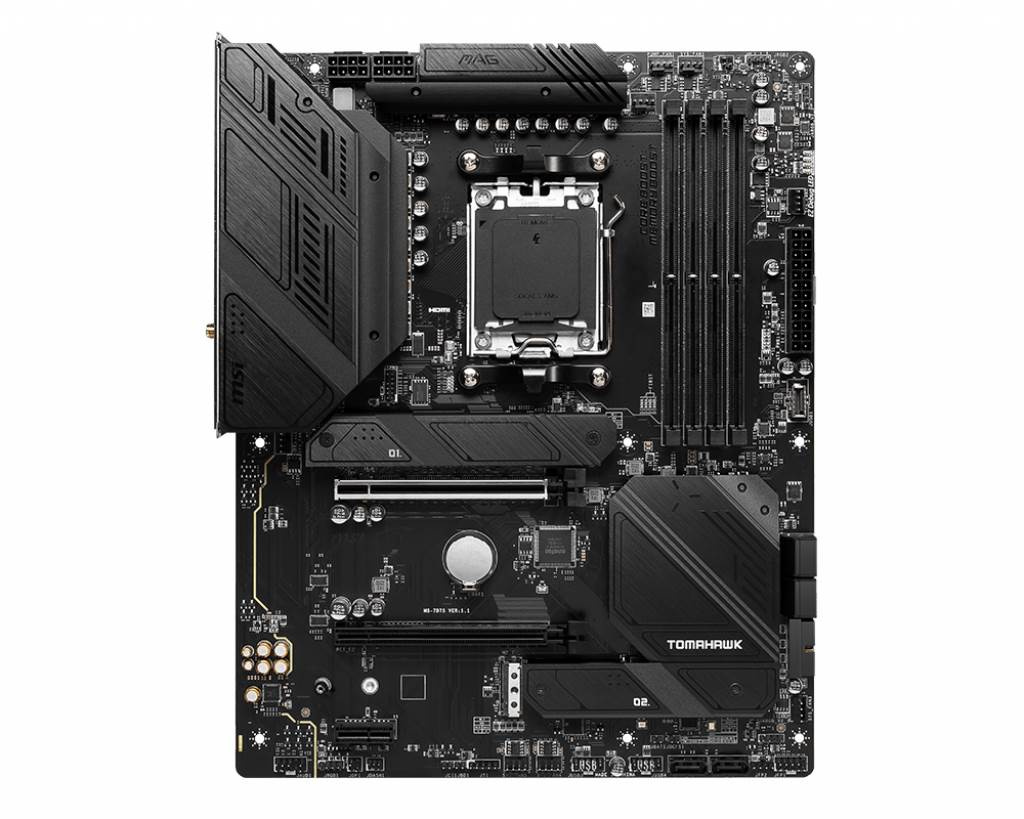

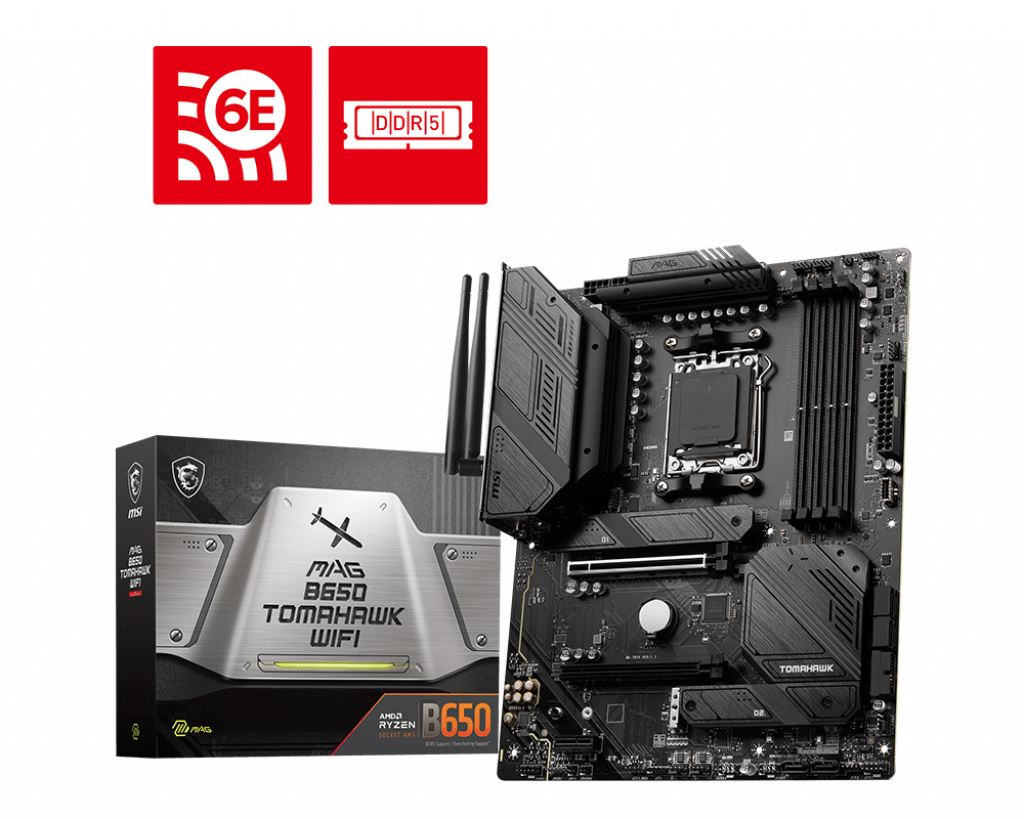

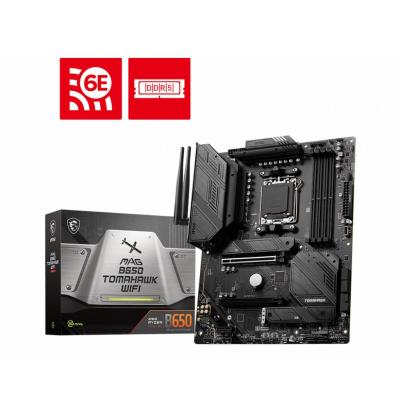

MAG B650 TOMAHAWK WIFI

  • Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 7600+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

CHIPSET

AMD B650

CPU SUPPORT

Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
Socket AM5

MEMORY

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

ONBOARD GRAPHICS

1x HDMI™
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

2x PCI-E x16 slot
Support x16/ x4
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Realtek® RTL8125B 2.5Gbps LAN

WIRELESS / BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

"* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11."

AUDIO

Realtek® ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

LED FEATURE

4x EZ Debug LED

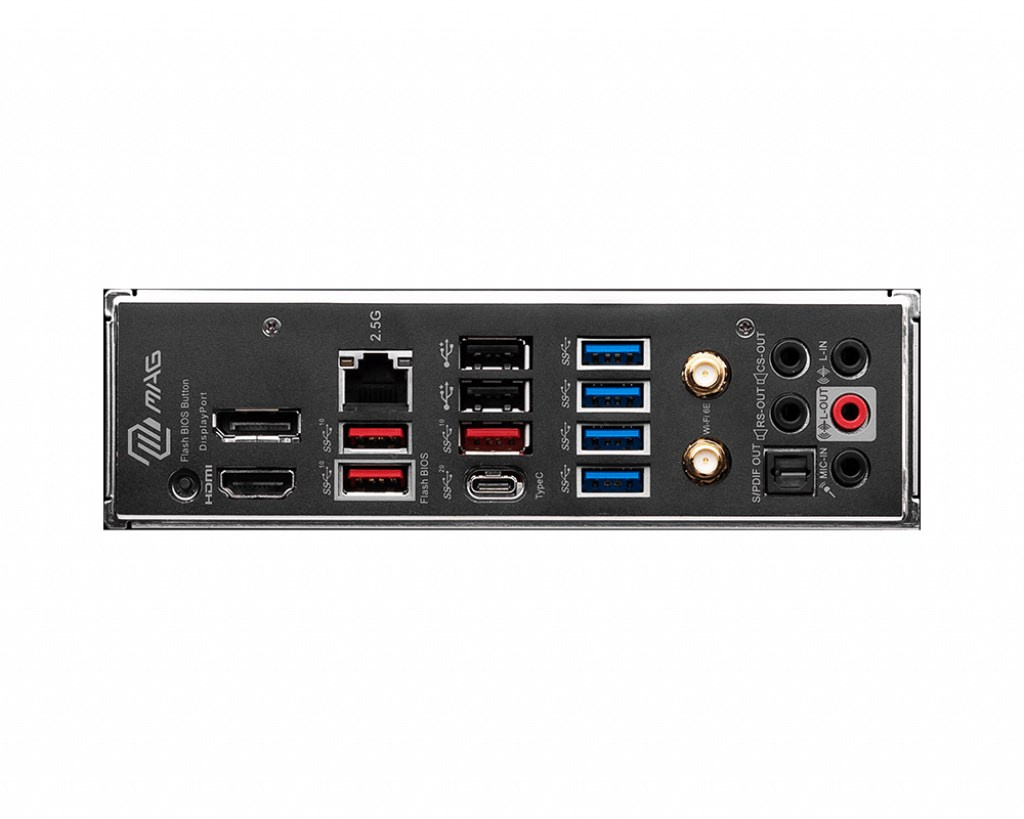

BACK PANEL PORTS

DisplayPort 1.4
2.5G LAN Port
USB 2.0 Port
USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
Flash BIOS Button
HDMI™ 2.1 Port
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION

ATX
243.84mmx304.8mm

.
Technologie paměti RAM: DDR5
Socket (patice): Socket AM5 (LGA 1718)
Chipset: AMD B650
PCI Express x16: 2
Podpora RAID: 10
LPT port: Ne
Formát základní desky: ATX
3.5mm Jack: Ano
Bezdrátové připojení: WiFi + Bluetooth
Pro procesory: AMD
Počet paměťových slotů: 4
DisplayPort: 1
TPM: Ano
USB 2: 6
USB 3: 9
M.2 slot: 3
SATA 3: 6
VGA: 0
DVI: 0
HDMI: 1
Led Header: Ano
PCI Express x1: 1
USB C: 2
LAN: 2.5Gbit/s
