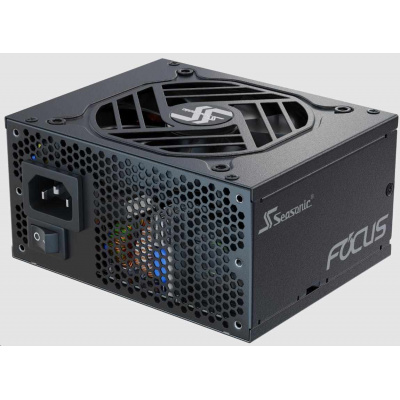

SEASONIC zdroj 750W FOCUS SGX-750 (2021), 80+ GOLD
Popis
Parametry
Hlídací pes

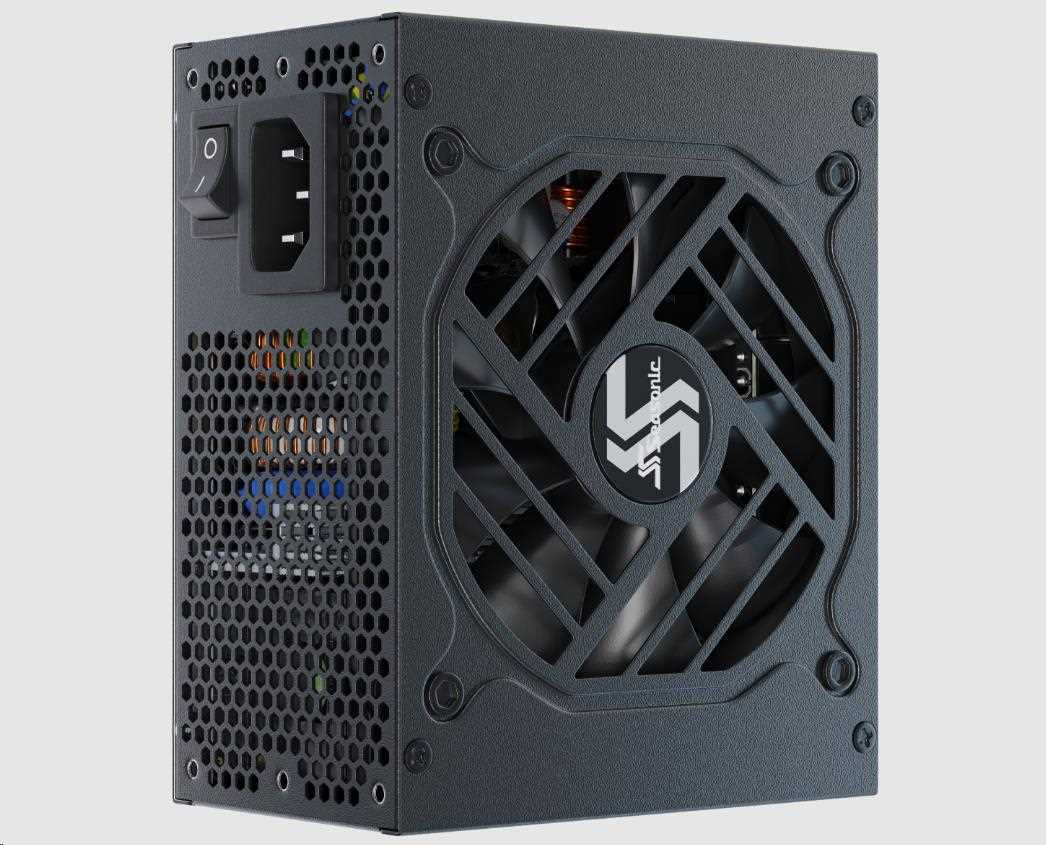

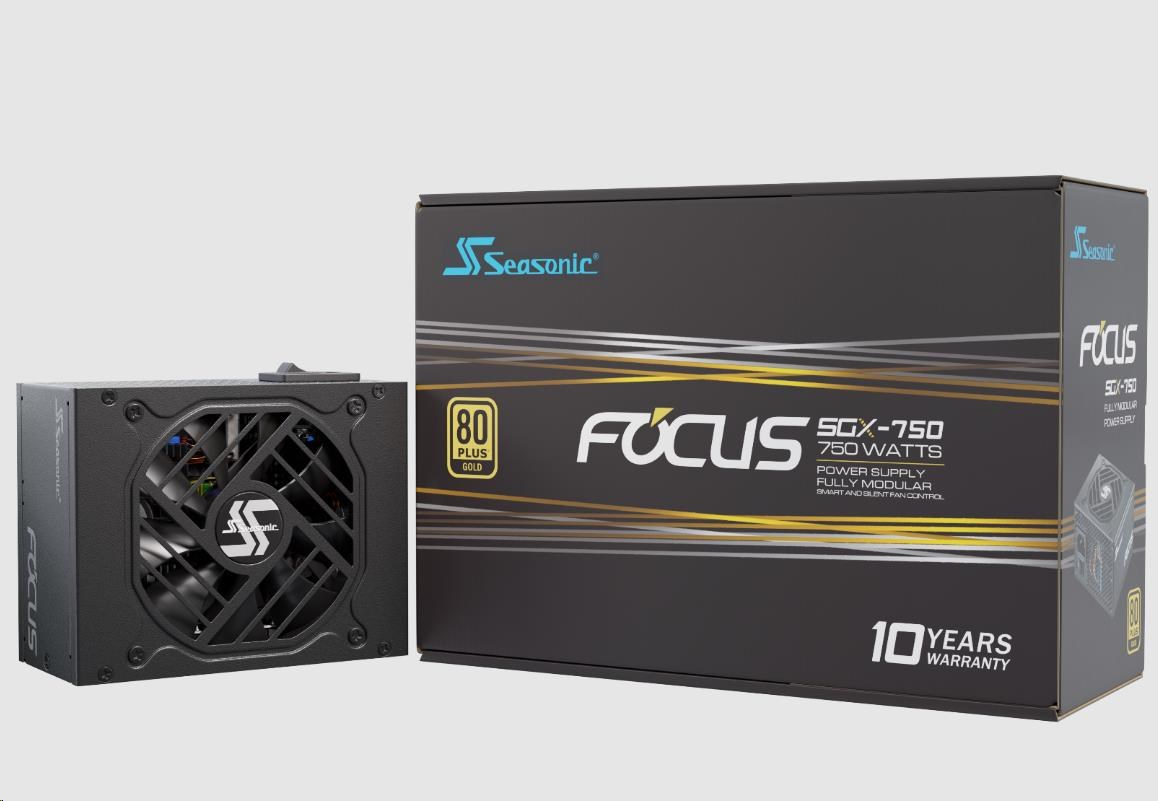

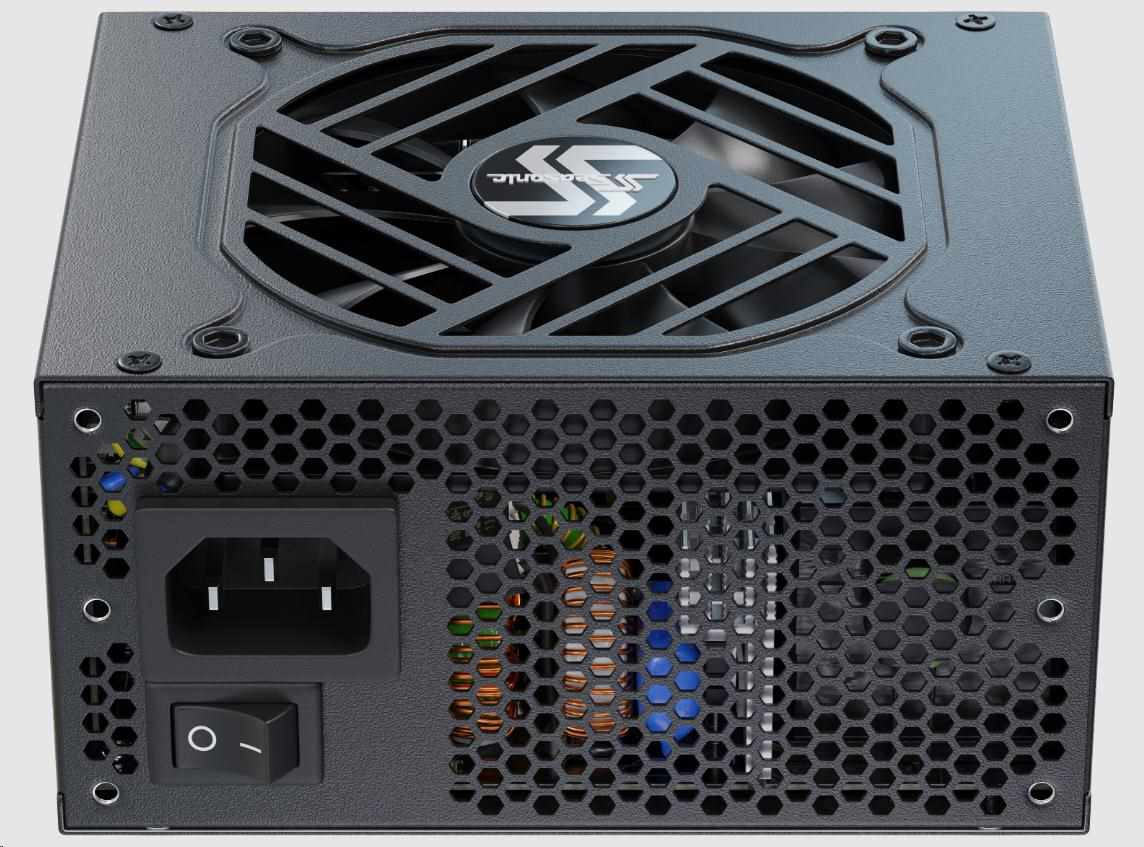

FOCUS SGX-750 (2021)
The new line of Seasonic's FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
- SFX 12 V / ATX 12 V
- Fully Modular
- 80 PLUS Gold Certified
- 10 Years Warranty
- Dimensions: 125 mm (L) x 100 mm (W) x 63.5 mm (H)
TECHNICAL SPECIFICATIONS
| 80PLUS® | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | Intel SFX 12 V / ATX 12 V |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Size | 92 mm |
| Fan Control | Premium Hybrid Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH |
| Modularity | Fully Modular |
| Cable type | Flat black cables |
| Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 10 Years |
| AC Input | Voltage: 100 V - 240 V Current: 10 - 5 A Frequency: 50 Hz - 60 Hz |
.
Formát zdroje:
ATX
Konektory:
PCIe 8-pin
Konektory:
Molex
Konektory:
SATA 15-pin
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Gold
Výkon zdroje (W):
750
Aktuální cena produktu je4545Kč
s dph
